        S-waveplate偏振轉換片

        S-waveplate偏振轉換片



        S-waveplate偏振轉換片

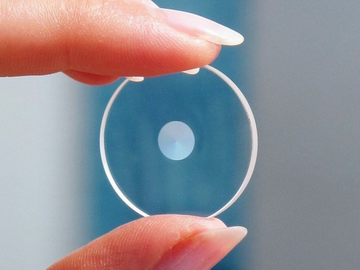

        Altechna和Wophotonics公司的產品:S-waveplate偏振轉換片是一種超結構波片可以將線偏振光轉換為輻射狀或環狀偏振。

        S-waveplate偏振轉換片S-waveplate偏振轉換片

        特點:

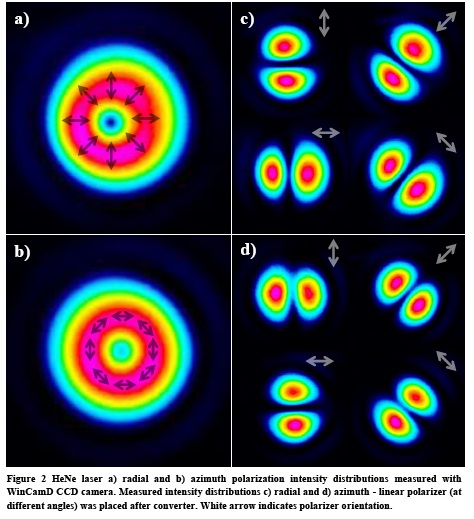

        • Converts linear polarization to radial or azimuthal
        • Can be used to create an optical vortex
        • High damage threshold
        • Nearly 100% efficiency in polarization conversion for dedicated wavelengths
        • 50-90% transmission (AR coatings applicable)
        • Large aperture possible (up to 10 mm or bigger; standard is 6 mm)
        • No glued components – more resistant to heat
        • No “ineffective center” problem
        • No segment stitching

        S-waveplate偏振轉換片



        Product
        Operation wavelength
        Transmission
        Clear Aperture, mm

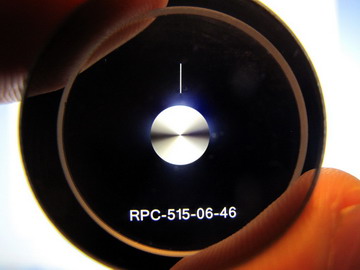

        RPC-488-02
        488 nm ±15 nm
        > 40 %
        2
        RPC-488-04
        4
        RPC-488-06
        6
        RPC-488-08
        8
        RPC-515-02
        515 nm ±20 nm
        > 45 %
        2
        RPC-515-04
        4
        RPC-515-06
        6
        RPC-515-08
        8
        RPC-632-02
        632 nm ±20 nm
        > 50 %
        2
        RPC-632-04
        4
        RPC-632-06
        6
        RPC-632-08
        8
        RPC-800-02
        800 nm ±25 nm
        > 55 %
        2
        RPC-800-04
        4
        RPC-800-06
        6
        RPC-800-08
        8
        RPC-1030-02
        1030 nm ±35 nm
        > 65 %
        2
        RPC-1030-04
        4
        RPC-1030-06
        6
        RPC-1030-08
        8
        RPC-1550-02
        1550 nm ±40 nm
        > 75 %
        2
        RPC-1550-04
        4
        RPC-1550-06
        6
        RPC-1550-08
        8



        Altechna公司還提供:

        Ultrafast Optics: 超快光學元件
        Low GDD Ultrafast Mirrors:低GDD超快反射鏡
        Gires-Tournois Interferometer Mirrors:Gires-Tournois干涉儀反射鏡
        Ti:Sapphire Crystals
        Yb:KGW and Yb:KYW Crystals

        High Energy Opitcs: 高功率光學元件
        Polarizing Cubes for High Energy Applications:高功率偏振立方體
        High Energy Waveplates: 高功率波片
        High Energy Glan Laser Polarizers
        Low Loss HR Mirrors

        Polarizing Optics:偏振元件
        Zero Order Air Spaced Waveplates
        High Contrast Thin Film Polarizers
        Mid-IR Waveplates: 中紅外波片
        S-waveplate (Radial Polarization Converter)

        Laser Accessories:激光附件
        Watt Pilot Motorized Attenuator:電動衰減器
        PowerXP Compact Motorized Attenuator:小型電動衰減器
        Variable Beam Expanders:擴束器
        MOTE X - Motorized Variable Beam Expander: 電動擴束器

        Clear aperture, mm
        Operational wavelenght, mm
        Bandwidth, nm
        Configuration
        Optimization
        Attenuation range @ CWL
        Product ID
        10
        532
        ±10
        λ/2 LO waveplate + high energy polarizing cube
        0.5-95
        >20, 10 Hz, 10 ns, 1064 nm
        2-CVB-EPOC-10-0532-M
        10
        1064
        ±10
        λ/2 LO waveplate + high energy polarizing cube
        0.5-95
        >20, 10 Hz, 10 ns, 1064 nm
        2-CVB-EPOC-10-1064-M
        10
        1550
        ±10
        λ/2 LO waveplate + high energy polarizing cube
        0.5-95
        >20, 10 Hz, 10 ns, 1064 nm
        2-CVB-EPOC-10-1550-M
        10
        355
        ±10
        λ/2 ZO waveplate + high energy polarizing cube
        0.5-95
        >20, 10 Hz, 10 ns, 1064 nm
        2-CVB-EPOC-10-0355-M
        15
        532
        ±2
        λ/2 LO waveplate + cemented polarizing cube
        0.5-95
        0.3, 10 Hz, 10 ns, 1064 nm
        2-CVB-MP-15-0532-M
        15
        780
        ±2
        λ/2 LO waveplate + cemented polarizing cube
        0.5-95
        0.3, 10 Hz, 10 ns, 1064 nm
        2-CVB-MP-15-0780-M
        15
        1064
        ±2
        λ/2 LO waveplate + cemented polarizing cube
        0.5-95
        0.3, 10 Hz, 10 ns, 1064 nm
        2-CVB-MP-15-1064-M
        15
        1550
        ±2
        λ/2 LO waveplate + cemented polarizing cube
        0.5-95
        0.3, 10 Hz, 10 ns, 1064 nm
        2-CVB-MP-15-1550-M
        15
        532
        ±10
        λ/2 LO waveplate + cemented polarizing cube
        0.5-95
        >0.3, 10 Hz, 10 ns, 1064 nm
        2-CVB-MPEP-15-0532-M
        15
        780
        ±10
        λ/2 LO waveplate + cemented polarizing cube
        0.5-95
        >0.3, 10 Hz, 10 ns, 1064 nm
        2-CVB-MPEP-15-0780-M
        15
        1064
        ±10
        λ/2 LO waveplate + cemented polarizing cube
        0.5-95
        >0.3, 10 Hz, 10 ns, 1064 nm
        2-CVB-MPEP-15-1064-M
        15
        1550
        ±10
        λ/2 LO waveplate + cemented polarizing cube
        0.5-95
        >0.3, 10 Hz, 10 ns, 1064 nm
        2-CVB-MPEP-15-1550-M
        15
        355
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-0355-M
        15
        400
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-0400-M
        15
        515
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-0515-M
        15
        532
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-0532-M
        15
        780
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-0780-M
        15
        800
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-0800-M
        15
        1064
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-1064-M
        15
        1550
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-1550-M
        15
        355
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-0355-M
        15
        400
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-0400-M
        15
        515
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-0515-M
        15
        532
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-0532-M
        15
        780
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-0780-M
        15
        800
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-0800-M
        15
        1064
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-1064-M
        15
        1550
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-1550-M
        15
        343
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-0343-M
        15
        266
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-0266-M
        15
        780-820
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-7882-M
        15
        1020-1040
        ±5
        λ/2 ZO waveplate + TFP
        Transmission mode
        0.5-95 %
        2-EWP-T-1030-M
        15
        266
        ±5
        λ/2 ZO waveplate + 2x TFP
        Reflection mode
        0.3-99 %
        2-EWP-R-0266-M
        15
        780-820
        ±20
        λ/2 ZO waveplate + 2x broadband (ultrafast) TFP
        Broadband reflection mode
        0.5-98 %
        2-EWP-BBR-0800-M
        15
        1020-1040
        ±20
        λ/2 ZO waveplate + 2x broadband (ultrafast) TFP
        Broadband reflection mode
        0.5-98 %
        2-EWP-BBR-1030-M
        15
        775 - 825
        ±25
        λ/2 ZO waveplate + Broadband (ultrafast) TFP
        Reflection mode
        4-96 %
        2-UWP-R1-0800
        15
        775 - 825
        ±25
        λ/2 ZO waveplate + Broadband (ultrafast) TFP
        Reflection contrast mode
        0.1-70 %
        2-UWP-R2-0800
        15
        1005-1055
        ±25
        λ/2 ZO waveplate + Broadband (ultrafast) TFP
        Reflection mode
        4-96 %
        2-UWP-R1-1030
        15
        1005-1055
        ±25
        λ/2 ZO waveplate + Broadband (ultrafast) TFP
        Reflection contrast mode
        0.1-70 %
        2-UWP-R2-1030
        15
        750 - 850
        ± 50
        λ/2 achromatic waveplate + Broadband (ultrafast) TFP
        Reflection mode
        4-96 %
        2-UWPA-R1-0800
        15
        750 - 850
        ± 50
        λ/2 achromatic waveplate + Broadband (ultrafast) TFP
        Reflection contrast mode
        0.1-70 %
        2-UWPA-R2-0800
        15
        980 - 1090
        ± 50
        λ/2 achromatic waveplate + Broadband (ultrafast) TFP
        Reflection mode
        4-96 %
        2-UWPA-R1-1030
        15
        980 - 1090
        ± 50
        λ/2 achromatic waveplate + Broadband (ultrafast) TFP
        Reflection contrast mode
        0.1-70 %
        2-UWPA-R2-1030
        12
        650-1100
        λ/2 Achromatic waveplate + Glan laser polarizer
        1 - 90 %
        >5 J/cm2 10 Hz, 10 ns, 1064 nm
        2-BBWP-T-NIR1-M
        12
        900-2100
        λ/2 Achromatic waveplate + Glan laser polarizer
        1 - 90 %
        >5 J/cm2 10 Hz, 10 ns, 1064 nm
        2-BBWP-T-NIR2-M
        12
        2000-4000
        λ/2 Achromatic waveplate + Glan laser polarizer
        1 - 90 %
        >5 J/cm2 10 Hz, 10 ns, 1064 nm
        2-BBWP-T-MIR1-M
        12
        3000-5000
        λ/2 Achromatic waveplate + Glan laser polarizer
        1 - 90 %
        >5 J/cm2 10 Hz, 10 ns, 1064 nm
        2-BBWP-T-MIR2-M



        Clear aperture
        Operational wavelength, nm
        Attenuation range
        Polarization contrast
        Product ID
        8
        532
        0.1 - 99%
        >1000:1
        6-PWRXP-532
        8
        343
        0.1 - 97%
        >1000:1
        6-PWRXP-343
        8
        355
        0.1 - 97%
        >1000:1
        6-PWRXP-355
        8
        400
        0.1 - 98%
        >1000:1
        6-PWRXP-400
        8
        515
        0.1 - 99%
        >1000:1
        6-PWRXP-515
        8
        800
        0.1 - 99%
        >1000:1
        6-PWRXP-800
        8
        1030
        0.04 - 99%
        >3000:1
        6-PWRXP-1030
        8
        1064
        0.04 - 99%
        >3000:1
        6-PWRXP-1064
        8
        780-820
        0.5 - 95%
        >200:1
        6-PWRXP-780-820
        8
        1020-1040
        0.5 - 95%
        >200:1
        6-PWRXP-1020-1040



        Type
        Expansion
        Wavelength, nm
        Input aperture, mm
        Exit aperture, mm
        Housing length, mm
        Housing diameter, mm
        Product ID
        Nd:YAG line
        2X
        1064
        6
        12
        56-62
        25.4
        6-BE-2X-1064-S
        Nd:YAG line
        3X
        1064
        5
        15
        56-62
        25.4
        6-BE-3X-1064-S
        Nd:YAG line
        4X
        1064
        4,5
        18
        66-72
        25.4
        6-BE-4X-1064-S
        Nd:YAG line
        5X
        1064
        3,2
        17,5
        78-84
        25.4
        6-BE-5X-1064-S
        Nd:YAG line
        6X
        1064
        2,2
        13,2
        82-88
        25.4
        6-BE-6X-1064-S
        Nd:YAG line
        8X
        1064
        2
        16
        110-118
        25.4
        6-BE-8X-1064-S
        Nd:YAG line
        10X
        1064
        1,8
        18
        138-148
        25.4
        6-BE-10X-1064-S
        Nd:YAG line
        2X
        532
        6
        12
        56-62
        25.4
        6-BE-2X-532-S
        Nd:YAG line
        3X
        532
        4,5
        15
        56-62
        25.4
        6-BE-3X-532-S
        Nd:YAG line
        5X
        532
        3
        15
        78-84
        25.4
        6-BE-5X-532-S
        Nd:YAG line
        10X
        532
        1,5
        15
        138-148
        25.4
        6-BE-10X-532-S
        Nd:YAG line
        2X
        355
        5
        10
        56-62
        25.4
        6-BE-2X-355-S
        Nd:YAG line
        3X
        355
        5
        15
        56-62
        25.4
        6-BE-3X-355-S
        Nd:YAG line
        5X
        355
        3
        15
        78-84
        25.4
        6-BE-5X-355-S
        Nd:YAG line
        10X
        355
        1,5
        15
        138-148
        25.4
        6-BE-10X-355-S
        Nd:YAG line
        4X
        532
        4
        16
        66-72
        25.4
        6-BE-4X-532-S
        Nd:YAG line
        6X
        532
        2
        12
        82-88
        25.4
        6-BE-6X-532-S
        Nd:YAG line
        8X
        532
        1,8
        14,5
        110-118
        25.4
        6-BE-8X-532-S
        Nd:YAG line
        8X
        355
        1,8
        14,5
        110-118
        25.4
        6-BE-8X-355-S
        Nd:YAG line
        6X
        355
        2
        12
        82-88
        25.4
        6-BE-6X-355-S
        Nd:YAG line
        4X
        355
        4
        16
        66-72
        25.4
        6-BE-4X-355-S



        Line
        Expansion
        Wavelength, nm
        Input aperture, mm
        Exit aperture,mm
        Housing diameter, mm
        Housing length, mm
        Mounting thread
        Product ID
        Dual Wavelength
        2X - 8X
        1064 / 532
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-1064-532
        Dual Wavelength
        2X - 8X
        1030 / 515
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-1030-515
        Dual Wavelength
        2X - 8X
        800 / 400
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-0800-400
        Dual Wavelength
        1.5X - 5X
        1064 / 532
        8
        30
        45
        130
        M27x1
        6-BE-Tx1,5-5-1064-532
        Dual Wavelength
        1.5X - 5X
        1030 / 515
        8
        30
        45
        130
        M27x1
        6-BE-Tx1,5-5-1030-515
        Dual Wavelength
        1.5X - 5X
        800 / 400
        8
        30
        45
        130
        M27x1
        6-BE-Tx1,5-5-0800-400
        Femtosecond
        2X - 8X
        515
        6
        25
        20 - 45
        100 - 120
        M27x1
        6-BE-sTx2-8-0515
        Femtosecond
        2X - 8X
        1030
        6
        25
        20 - 45
        100 - 120
        M27x1
        6-BE-sTx2-8-1030
        Femtosecond
        1.5X - 5X
        1030
        8
        30
        45
        130
        M27x1
        6-BE-Tx1,5-5-1030
        Femtosecond
        1.5X - 5X
        515
        8
        30
        45
        130
        M27x1
        6-BE-Tx1,5-5-0515
        Femtosecond
        1.5X - 5X
        343
        8
        30
        45
        130
        M27x1
        6-BE-Tx1,5-5-0343
        Femtosecond
        2X - 8X
        1030
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-1030
        Femtosecond
        2X - 11,5X
        515
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-0515
        Femtosecond
        2X - 11,5X
        800
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-0800
        Femtosecond
        2X - 11X
        343
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-11-0343
        Nd:YAG
        1.5X - 4X
        1064
        12
        16
        28
        95 -115
        M27x1
        6-BE-sTx1.5-4-1064
        Nd:YAG
        1.5X - 4X
        532
        12
        16
        28
        95 -115
        M27x1
        6-BE-sTx1.5-4-0532
        Nd:YAG
        1.5X - 4X
        355
        12
        16
        28
        95 -115
        M27x1
        6-BE-sTx1.5-4-0355
        Nd:YAG
        5X - 8X
        1064
        12
        16
        28
        95 -115
        M27x1
        6-BE-sTx5-8-1064
        Nd:YAG
        5X - 8X
        532
        12
        16
        28
        95 -115
        M27x1
        6-BE-sTx5-8-0532
        Nd:YAG
        5X - 8X
        355
        12
        16
        28
        95 -115
        M27x1
        6-BE-sTx5-8-0355
        Nd:YAG
        2X - 8X
        1064
        6
        25
        20 - 45
        100 - 120
        M20x1
        6-BE-sTx2-8-1064
        Nd:YAG
        2X - 8X
        355
        6
        25
        20 - 45
        100 - 120
        M20x1
        6-BE-sTx2-8-0355
        Nd:YAG
        2X - 8X
        1064
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-1064
        Nd:YAG
        2X - 8X
        532
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-0532
        Nd:YAG
        2X - 8X
        355
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-0355
        Nd:YAG
        1.5X - 5X
        1064
        8
        30
        45
        130
        M27x1
        6-BE-Tx1,5-5-1064
        Nd:YAG
        1.5X - 5X
        532
        8
        30
        45
        130
        M27x1
        6-BE-Tx1,5-5-0532
        Nd:YAG
        1.5X - 5X
        355
        8
        30
        45
        130
        M27x1
        6-BE-Tx1,5-5-0355
        Nd:YAG
        3X - 9X
        266
        11
        36
        45 - 50
        130 - 145
        M27x1
        6-BE-Tx2-8-0266
        Nd:YAG
        1X - 8X
        1064
        7
        40
        60
        148
        M27x1
        6-BE-Tx1-8-1064
        Nd:YAG
        1X - 8X
        532
        7
        40
        60
        148
        M27x1
        6-BE-Tx1-8-0532
        Nd:YAG
        1X - 8X
        355
        7
        40
        60
        148
        M27x1
        6-BE-Tx1-8-0355
        Nd:YAG
        2X - 8X
        532
        6
        25
        20 - 45
        100 - 120
        M20x1
        6-BE-sTx2-8-0532



        Wavelength, nm
        Magnification
        Coatings
        Product ID
        1010 – 1090
        2x
        Dielectric
        6-RBE-Tx2-10-90
        1010 – 1090
        4x
        Dielectric
        6-RBE-Tx4-10-90
        600-1200
        2x
        Metallic
        6-RBE-Tx2-S
        600-1200
        4x
        Metallic
        6-RBE-Tx4-S
        750 – 850
        2x
        Dielectric
        6-RBE-Tx2-75-85
        750 – 850
        4x
        Dielectric
        6-RBE-Tx4-75-85



        Wavelength, nm
        Lens material
        Product ID
        510-540
        BK7
        6-MBE-2
        340 - 360
        UVFS
        6-MBE-3
        1020 - 1070
        BK7
        6-MBE-1














        玻色智能科技有限公司光譜儀專家
        上海玻色智能科技有限公司
        上海: (021)3353-0926, 3353-0928   北京: (010)8217-0506
        廣州: 139-0221-4841   武漢: 139-1733-4172
        全國銷售服務熱線:4006-171751   Email: info@bosontech.com.cn
        www.www53908.com    2008-2025 All Rights Reserved!
        欧美激情综合一区二区三区|久久www免费人成精品妓女|中文字幕巨乱亚洲|亚洲午夜高清拍精品|亚洲永久精品|亚洲|国产品国语在线不卡
        <optgroup id="wyv1v"><em id="wyv1v"><pre id="wyv1v"></pre></em></optgroup>

        <optgroup id="wyv1v"><li id="wyv1v"></li></optgroup>

        <track id="wyv1v"></track>
          <span id="wyv1v"><output id="wyv1v"></output></span>

            <span id="wyv1v"><output id="wyv1v"></output></span>
