      1. 光譜輻射計,分光輻射度計

        光纖光譜儀,積分球,均勻光源,太赫茲系統應用專家
        光譜儀
        >>
        光譜儀系統
        >>
        激光器
        >>
        激光測量
        >>
        寬帶光源
        >>
        LED和影像測量
        >>
        光譜儀附件
        >>
        太赫茲系統
        >>
        濾光片
         濾光片
        石墨烯納米材料
         石墨烯納米材料




        Specbos 1201,
        JETI光譜輻射計,分光輻射度計

        Jeti specbos 1201

        德國JETI公司的Specbos 1201是一種高精度、小型光譜輻射計,可以測量連續脈沖、單脈沖及連續光源,可以用于實驗室和生產環境中的相關測量:
        亮度及輻射出射度
        照度及輻照度
        主波長及色純度
        峰值波長、譜帶半帶寬(FWHM)
        色溫
        顯色系數
        晝夜指標,有效光和輻射
        (照明強度及光通量測量件為選裝組件)

        JETI Specbos 1201光譜輻射計產品資料下載

        測量對象:
        應急燈, 閃光燈, 專柜燈和慢脈沖 LED 的脈沖源
        電視、監視器、LCD-, LED-顯示器、數字投影儀、紅綠燈和車燈的連續和準連續光源

        優點:
        USB 供電
        來源于可見光同步的脈沖信號,不需使用電氣時鐘信號
        單脈沖觸發
        安裝、操作簡單
        軟件功能強大且易于操作管理

        Specification

        Optical Parameters
        Spectral range 380 nm .. 780 nm
        Wavelength resolution 5 nm
        Calculated wavelength step 1 nm
        Digital electronic resolution 16 bit ADC (15 Bit used)
        Viewing angle 1.8 Degree
        Measuring distance/ diameter 20 cm - Diameter 6 mm; 100 cm - Diameter 31 mm (luminance)
        Measuring values Spectral radiance;
        Total luminance / total radiance;
        Total illuminance / total irradiance;
        Chromaticity coordinates x,y; u',v';
        Correlated Color Temperature, color purity;
        Color Rendering Index;
        Circadian metrics, Photosynthetically Active Radiation
        Measuring range and accuracies
        Measuring range luminance 2 ... 7 X E4 cd/m2(higher values with optional filter)
        Measuring range illuminance 20 ... 5 X E5 lx
        Luminance accuracy ± 2 % (@ 1000 cd/m2 and 2856K)
        Luminance reproducibility ± 1 %
        Chromaticity accuracy ± 0.002 x, y (@2856K)
        Color reproducibility ± 0.0005 x, y
        CCT reproducibility ± 20 K (@ 2856 K)
        Wavelength accuracy ± 0.5 nm
        Technical Parameters
        Dispersive element Imaging grating (flat field)
        Light receiving element Photodiode array 1024 pixel (binned to 256 pixel)
        Power supply USB powered
        PC interface USB 2.0 fullspeed
        Dimensions 140 mm x 58 mm x 34 mm
        Weight 350 g
        Operating conditions Temperature 10 ... 40degree
        Humidity < 85 % relative humidity at 35 degree
        Miscellaneous
        Accessories (included) PC software JETI LiMeS for Windows 2000/XP/Vista
        Operation manual
        USB cable
        Transport box
        Tripod
        Calibration certificate
        Calibration NIST traceable
        Recommended recalibration interval 1 year

        競爭對手:PR650

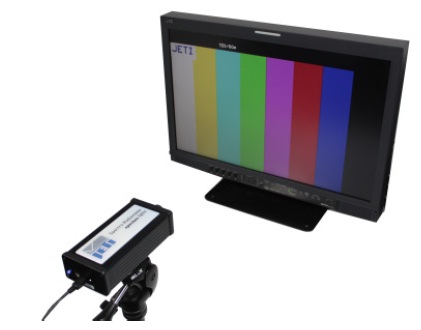

        Specbos 1211
        寬光譜光譜輻射度計

        specbos 1211
        specbos 1211-RS
        specbos 1211-BT
        specbos 1211-LAN
        USB2.0
        RS232 and USB2.0
        Bluetooth and USB2.0
        LAN and USB2.0

        光譜范圍:
        specbos 1211 : 350 nm - 1000 nm
        specbos 1211 UV : 250 nm - 1000 nm

        寬光譜光譜輻射度計

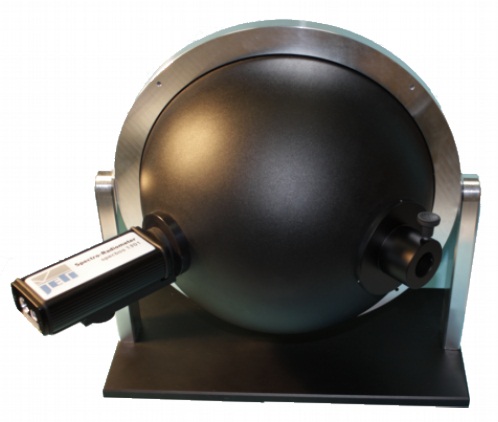

        Specbos 1301,Specbos 1311
        帶積分球的光譜輻射度計

        帶積分球的光譜輻射度計



        Specbos 2001 ST, Specbos 2101 ST
        反射比光度計
