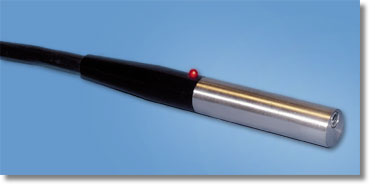

        InPhotonics光纖拉曼探頭 InPhotonics光纖拉曼探頭



        拉曼探頭

        我們提供InPhotonics的多種拉曼光譜儀的光纖拉曼探頭,每一種探頭都具有完全濾掉瑞利線的功能,能夠很好的收集信號,并具有緊湊、耐用的探頭設計。不同的探頭具有不同的激勵波長,可以適用于實驗室、工業生產和環境監測等方面的應用。探頭均與海洋光學公司的拉曼光譜儀的配置相兼容。



        我們也可以根據客戶的需求定制拉曼探頭

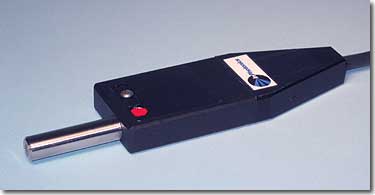

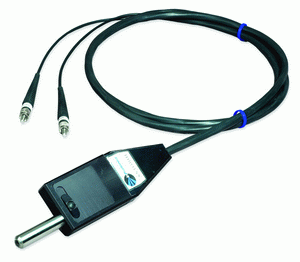

        實驗室級光纖拉曼探頭

        InPhotonics光纖拉曼探頭InPhotonics光纖拉曼探頭

        Sampling Head Anodized aluminum probe, 4.2" x 1.5" x 0.5" (107 x 38 x 12.7 mm ), with 1.5" long (38 mm) stainless-steel probe tip.
        Spectral Range 300 - 3900 cm-1 (Stokes)
        Excitation Wavelengths 514, 532, 632, 670, "785" (782-788), 830 nm (laser must be +/- 1.5 nm of specified wavelength, except for 785 nm version)
        Working Distance 7.5 mm (std.), 5 or 10 mm optional
        Fiber Configuration

        Permanently-aligned combination of two single fibers (105 μm excitation fiber, 200 μm collection fiber standard) with filtering and steering micro-optics, N.A. 0.22, in rugged polyurethane jacket.

        Filter Efficiency Patented design for complete filtering of the laser line and quartz spectral contributions from both input and output fibers (O.D. > 6 at laser wavelength)
        Physical Resistance

        Durable probe can be used up to 80oC

        Cable Length 1.5 m
        Safety Features Manual safety shutter to block laser output; Class I sample holders available
        Coupling System Available with FC (std.) or SMA 905 connectors

        您可以訪問InPhotonics公司網站了解更多: www.inphotonics.com
