      1. InnPho紅外隔離器,紅外偏振片,紅外鏡頭,紅外準直鏡

        光纖光譜儀,積分球,均勻光源,太赫茲系統應用專家
        光譜儀
        >>
        光譜儀系統
        >>
        激光器
        >>
        激光測量
        >>
        寬帶光源
        >>
        LED和影像測量
        >>
        光譜儀附件
        >>
        太赫茲系統
        >>
        濾光片
         濾光片
        石墨烯納米材料
         石墨烯納米材料


        InnPho紅外隔離器,紅外偏振片,紅外鏡頭,紅外準直鏡



        InnPho紅外隔離器,紅外偏振片,紅外鏡頭,紅外準直鏡

        InnPho紅外隔離器,紅外偏振片,紅外鏡頭,紅外準直鏡

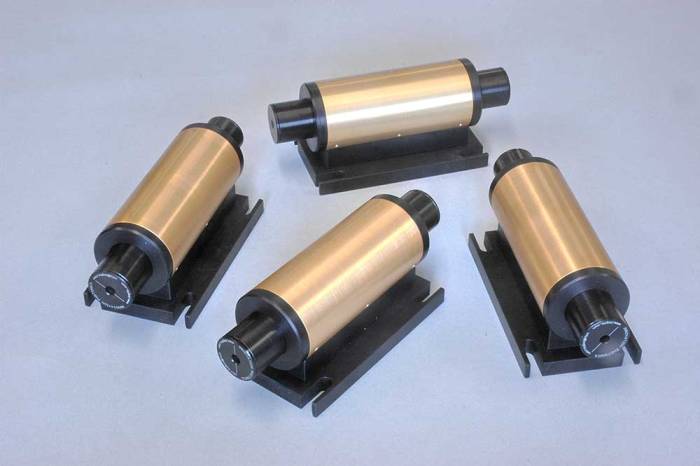

        紅外光隔離器

        紅外光隔離器

        波長范圍 4-14um,4-4.5mm狹縫

        Catalog
        Number
        Aperture Transmittance Isolation Total
        Length
        Power
        Rating
        FIO-5-λ 4.5 mm 75-86% >> 1000:1 ~ 6″ inquire
        Catalog
        Number
        Aperture Transmittance Isolation Total
        Length
        Power
        Rating
        FIO-4-4.5 4.0 mm 75-86% > 10,000:1 ~ 2″ Discuss

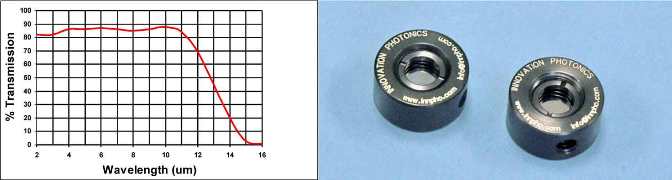

        寬波段紅外偏振片,2-12um

        寬波段紅外偏振片

        寬波段紅外偏振片

        Catalog Number Aperture Transmittance of P-Ray Power Rating Extinction of Crossed Pair
        PGC-4
        PGC-5
        4 mm
        5 mm
        ≥98%
        ≥98%
        100 MW/cm2
        100 MW/cm2
        2×105
        2×105

        PGC-4: 15 mm Diameter x 36 mm long

        PGC-5: 1-inch long x 2.2 inches long

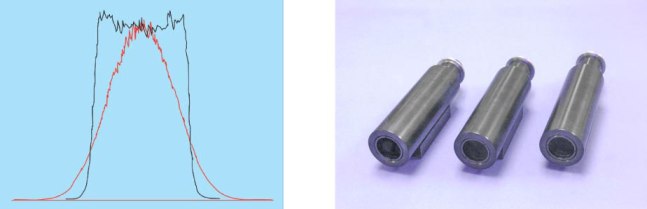

        平頂擴束器

        平頂擴束器

        Spectral Range: 350 nm to 2 μm
        Cross section uniformity: ±5-10% (neglecting speckle)
        Laser damage threshold: 20 J/cm2, 1054 nm, 1 ns pulse

        Part
        Number
        Description
        ELG-10-λ Flat-Top Beam Expander, 10 mm dia collimated output
        ELG-20-λ Flat-Top Beam Expander, 20 mm dia collimated output
        ELG-45-λ Flat-Top Beam Expander, 45 mm dia collimated output
        GCE-9 Flat-Top Converter element, mounted

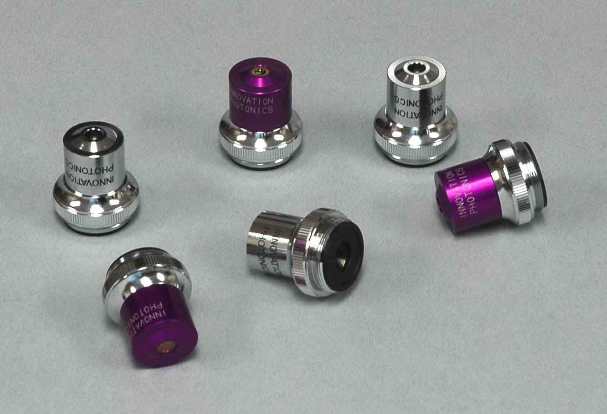

        光纖準直鏡 紅外鏡頭

        光纖準直鏡 紅外鏡頭

        Catalog
        Number
        Focal Length Working Distance Numerical
        Aperture
        Maximum Beam
        Dia
        Magnification
        LFO-2-4-λ 4.0 mm 3.6 mm 0.19 1.5 mm 40X
        LFO-2-6-λ 6.0 mm 5.2 mm 0.17 2.0 mm 27X
        LFO-2-9-λ 9.0 mm 8.1 mm 0.50 2.0 mm 18X
        LFO-3-12-λ 12.0 mm 10.9 mm 0.30 2.5 mm 13X
        LFO-3-15-λ 15.0 mm 13.4 mm 0.53 2.5 mm 11X

        光纖準直鏡 紅外鏡頭

        Catalog
        Number
        Clear Aperture Numerical Aperture Working Distance Focal Length
        LFO-5-6 5 mm 0.25 5.3 mm 6 mm
        LFO-5-12 5 mm 0.13 11.5 mm 12 mm
        LFO-5-18 5 mm 0.08 17.5 mm 18 mm

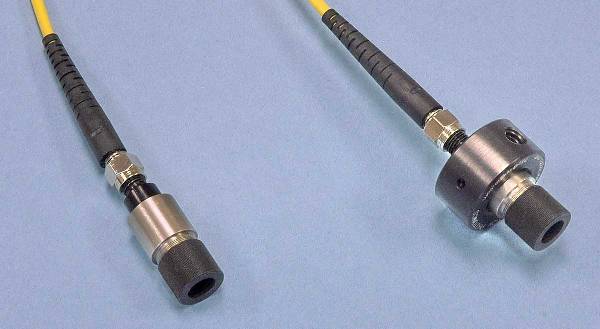

        紅外光纖準直鏡

        2-12um

        紅外光纖準直鏡

        Catalog Number Focal Length Clear Aperture Numerical Aperture
        FCR-6-λ 6 mm 0.5 mm 0.25
        FCR-12-λ 12 mm 1.0 mm 0.13
        FCR-18-λ 18 mm 1.6 mm 0.08
