        Graphene 石墨烯

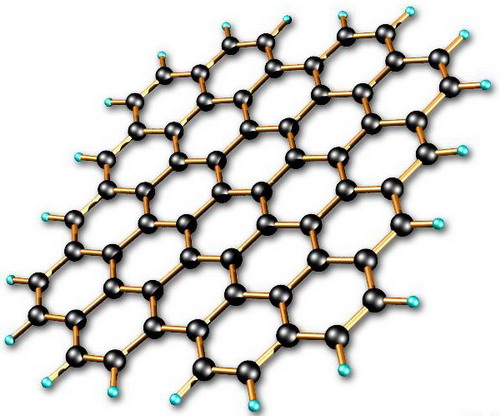

        石墨烯(graphene)是由單層碳原子緊密堆積成二維蜂窩狀晶格結構的一種碳質新材料,是構建其它維度碳質材料(如零維富勒烯、一維碳納米管、三維石墨)的基本單元。石墨烯具有優異的電學、熱學和力學性能,可望在高性能納電子器件、復合材料、場發射材料、氣體傳感器及能量存儲等領域獲得廣泛應用。由于其獨特的二維結構和優異的晶體學質量,石墨烯蘊含了豐富而新奇的物理現象,為量子電動力學現象的研究提供了理想的平臺,具有重要的理論研究價值。因此,石墨烯迅速成為材料科學和凝聚態物理領域近年來的研究熱點。

        graphene石墨烯



        所有石墨烯產品

        SiO2襯底單層石墨烯 Monolayer Graphene on 285 nm Silicon Dioxide Wafer, Sample Size:1cmx1cm: 5 pack Properties of Graphene Film
        The thickness and quality of graphene films are controlled by Raman Spectroscopy
        Graphene coverage is about 90%
        Graphene film is continuous with occasional holes and cracks.
        Graphene film is polycrystalline, i.e. it consists of grains with different crystallographic orientation.

        Properties of Silicon Dioxide/Silicone Substrate:
        The thickness of thermally grown oxide layer: 285nm
        The thickness of the silicon wafer is 500 μm
        Silicon wafer is P-doped.
        Orientation: <100>
        Resistance of the wafer: 0.005-0.001 Ohm;
        Monolayer Graphene on 285 nm Silicon Dioxide Wafer, Sample Size:1cmx1cm: 10 pack
        Monolayer Graphene on 285 nm Silicon Dioxide Wafer, Graphene area: 2"x2": 4 inch wafer
        玻璃襯底單層石墨烯 Monolayer Graphene on Glass: 1"x1", Sample Size: 1"x1" Monolayer graphene film is grown by CVD processing on a copper foil and transferred onto glass
        Properties of Graphene Film on glass
        Thickness and quality of graphene films is controlled by Raman Spectroscopy
        Graphene coverage is about 90%
        The graphene film is continuous, with occasional holes and cracks.
        The graphene film is polycrystalline, i.e. it consists of grains with different crystallographic orientation.
        T is higher than 97%
        Sheet resistance 1500 Ω

        Properties of Glass Substrate:
        Thickness: 0.7 mm
        Density: 2.38 g/cc
        Optical transmission without graphene (Visible Range, 380-800 nm)>99.9%
        Monolayer Graphene on Glass: 1"x1", Sample Size: 1"x1": 5 pack
        Monolayer Graphene on Glass: 2"x2", Sample Size: 2"x 2"
        PET襯底單層石墨烯 Monolayer Graphene on PET: 1"x1", Sample Size: 1"x 1" Monolayer graphene film is grown by CVD processing on a copper foil and transferred onto PET
        Monolayer Graphene on PET: 1"x1", Sample Size: 1"x 1": 5 PACK
        Monolayer Graphene on PET: 2"x2", Sample Size: 2"x 2"

        鎳箔基多層石墨烯 Multilayer Graphene Film on Nickel foil: 2"x2" Nickel foil thickness: 25 micron
        We offer multilayer graphene films that are about 300 monolayers (105 nm) thick on average.
        These graphene films are grown on nickel foil and continuous across nickel surface steps and grain boundaries.
        鎳基多層石墨烯 Multilayer Graphene Film on Nickel, Ten 10mmx10mm samples Multilayer Graphene Film on Nickel
        Multilayer Graphene Film on Nickel, Twenty 10mmx10mm samples
        Multilayer Graphene Film on Nickel,One Wafer 100mm (4 in)
        銅箔基單層石墨烯 Single Layer Graphene on Copper foil: 2"x2" Copper foil thickness: 20 micron
        Single Layer Graphene on Copper foil: 4"x2"
        Single Layer Graphene on Copper foil: 4"x4"

        CVD石墨烯TEM grids 25 pack: CVDGraphene TEM Grid on Copper 2000 support CVD Graphene film deposited on ultrafine copper TEM grids, 2000 Mesh
        Use CVD graphene grown on Ni to prepare TEM grids
        Thickness of CVD Graphene film: 0.3-2 nm (1-6 monolayers)
        Typical graphene coverage:60-90%
        5 pack: CVDGraphene TEM Grid on Copper 2000 support
        25 pack: CVDGraphene TEM Grid on Lacey Carbon Support CVD Graphene film deposited on Lacey carbon TEM grids, 300 Mesh
        Use CVD graphene grown on Ni to prepare TEM grids
        Thickness of CVD Graphene film: 0.3-2 nm (1-6 monolayers)
        Typical graphene coverage:60-90%
        5 pack: CVDGraphene TEM Grid on Lacey Carbon Support
        Trial pack: 10 CVDGraphene TEM Grids 5/5 5 CVD Graphene film deposited on lacey carbon TEM grids (300 Mesh) and 5 CVD Graphene film deposited on Copper TEM grids (2000 Mesh).
        Use CVD graphene grown on Ni to prepare TEM grids
        Thickness of CVD Graphene film: 0.3-2 nm (1-6 monolayers)
        Typical graphene coverage:60-90%

        立體多層石墨烯 3D Multilayer Graphene Film on Nickel Foam, 2"x2" 3D Multilayer graphene on Ni Foam
        3D Multilayer Graphene Film on Nickel Foam, 2"x4"
        3D Monolayer Graphene Film on Copper Foam, 1.5"x1.5", TWO Pack 3D graphene on Cu Foam
        3D Monolayer Graphene Film on Copper Foam, 2"x4"

        石墨烯納米粉末 Graphene Nanopowder: 3 nm Flakes - 1 g Grade AO-1 dry black powder
        Specifications:
        Specific surface area-600 m2/g
        Color: Black
        Solid content: 98%
        Carbon: 97%, Hydrogen 1%, Oxygen 2%
        Average flake thickness: 1 nm (less than 3 monolayers)
        Average Particle (lateral) size: ~10 microns.
        Graphene Nanopowder: 3 nm Flakes-Trial Size 0.5 g
        Graphene Nanopowder: 8 nm Flakes- 5 g Grade AO-2 dry powder
        Specific surface area-100 m/g2
        Color: Black
        Purity: 99.9%
        Average flake thickness: 8 nm (20-30 monolayers)
        Average Particle (lateral) size: ~ 550 nm (150-3000) nm.?
        Graphene Nanopowder: 8 nm Flakes- 25 g
        Graphene Nanopowder: 12 nm Flakes-5 g Grade AO-3 dry powder
        Specifications:
        Specific surface area-80 m/g2
        Color: Black
        Purity: 99.2%
        Average flake thickness: 12 nm (30-50 monolayers)
        Average Particle (lateral) size: ~ 4500 nm (1500-10000) nm.
        Graphene Nanopowder: 12 nm Flakes-25 g
        Graphene Nanopowder: 12 nm Flakes-100 g
        Graphene Nanopowder: 60 nm Flakes- 25 g Grade AO-4 dry powder
        Specifications:
        Specific surface area<15 m/g2
        Color: Black
        Purity: 98.5%
        Average flake thickness: 60 nm
        Particle (lateral) size: ~ 3-7 microns.
        Graphene Nanopowder: 60 nm Flakes-100 g
        Graphene Nanopowder: Grade C1, 25 g Grade C1
        Specifications:
        Specific surface area-60 m/g2
        Color: Black
        Purity: 97%
        Average flake thickness: 5-30nm
        Average Particle (lateral) size: ~ 5-25 microns.
        Graphene Nanopowder: Multilayer flakes, 5 g? Grade MO-1
        Specifications:
        Specific surface area-60 m/g2
        Color: Black
        Purity: 99.9%
        Average flake thickness: 28 nm
        Density: 2 g/cm3
        Graphene Nanopowder: Multilayer flakes, 25 g
        Graphene Nanopowder Trial kit Graphene Nanopowder Grade AO-2, 1 g
        Graphene Nanopowder Grade AO-3, 5 g
        Graphene Nanopowder Grade AO-4, 5 g
        Graphene Nanopowder Grade C-1, 5 g
        單層石墨烯溶液 Pristine Graphene Monolayer Flakes (50 ml) Dispersion in ethanol.
        Concentration: 1 mg/L
        Carbon content: 99.99%
        Ultrapure: no oxidation, no surfactants
        Average flake thickness: 0.35 nm (1 monolayer)
        Average Particle (lateral) size: ~ 550 nm (150-3000) nm.
        傳導石墨紙 Conductive Graphene Paper Diameter of Graphene Film: 100 mm
        Average thickness: 45 microns
        Electrical Conductivity: about 1000 S/cm
        Silvery/Nontransparent

        單層氧化石墨烯 Single Layer Graphene Oxide: 100 mg Dry powder
        Color:Brown
        Composition: Carbon (79%), Oxygen (20%)
        Flake size: 0.5-5 microns.
        Thickness: 1 atomic layer - at least 80%.
        Graphene oxide disperses readily in water and other solvents, breaking up into macroscopic flakes, mostly one layer thick. Graphene oxide layers are about 1.1 ± 0.2 nm thick.
        Single Layer Graphene Oxide: 500 mg
        High Porosity Reduced Graphene Oxide-250mg dry black powder
        Specific surface area-about 400 m2/g
        Color: Black
        Solid content: 98%
        Average flake thickness:1 monolayer
        Average Particle (lateral) size: ~3-10 microns.
        Flakes have multiple openings and holes
        Improved solubility in organic solvents?
        High Porosity Reduced Graphene Oxide-500mg
        High Surface Area Reduced Graphene Oxide 75 mg dry black powder
        Specifications:
        Specific surface area-833 m2/g
        Color: Black
        Solid content: 98%
        Carbon/Oxygen Ratio 10.5
        Average flake thickness:1 monolayer
        Average Particle (lateral) size: ~3-5 microns.
        氧化石墨烯 Reduced Graphene Oxide: 60 mg, Dry Nanopowder Color: Black
        Single layer flakes >50%
        Low concentration of lattice defects
        Specific surface area (SSA) >250m2/g
        Lateral size: 1um-10um
        Thickness: 0.5-0.6 nm
        單層氧化石墨烯水溶液 Single Layer Graphene Oxide Dispersion in Water: 60 ml Aqueous dispersion, 60 ml
        Concentration: 275 mg/L
        Composition: Carbon (79%), Oxygen (20%)
        Flake size: 0.5-5 microns.
        Thickness: 1 atomic layer - at least 80%.
        Color:Brown
        Single Layer Graphene Oxide Dispersion in Water: 175 ml
        Highly Concentrated Single Layer Graphene Oxide Dispersion in Water:60 ml Concentration: 5g/L, 0.33g per bottle
        Composition: Carbon (79%), Oxygen (20%)
        Flake size: 0.5-0.7 microns.
        Thickness: 1 atomic layer - at least 60%.
        Color:Brown
        Highly Concentrated Single Layer Graphene Oxide Dispersion in Water:175 ml
        Highly Concentrated Single Layer Graphene Oxide Dispersion in Water:1000 ml
        玻璃基氧化石墨烯 The Graphene OxideThin Film on Glass Diameter of Graphene Oxide Film: 35 mm
        Thickness: 175 nm
        Deposited on a round slide: D=50.8 cm, thickness=1 mm
        氧化石墨烯紙 Graphene Oxide Paper Diameter:4.0cm
        Thickness: 10 microns
        Non-conductive
        Tensile modulus> 20 GPa
        Color: Black
        Bends easily
        Kish石墨烯 Natural Kish Graphite (Grade 200), 5g Ultrapure: Carbon>99.2%, Moisture<0.35%
        Flake size: 0.7-2 mm
        Natural Kish Graphite (Grade 300), 0.2g Ultrapure: Carbon>99%
        Large Flakes: size 1-3 mm
        Natural Kish Graphite (Grade 300), 0.5g
        石墨烯轉移 5 Pack: Graphene Transfer Tape Thermal Release Tape, 5 pack
        Size: 200 mm x 200 mm
        Graphene Transfer Kit Twographene release Tapes (Size: 200 mm x 200 mm)
        Single Layer Graphene on Copper foil: 2"x2"
        Trial pack: Twenty 10mmx10mm samples, Graphene Film on Nickel





        石墨烯薄片溶液 Pristine Graphene Monolayer Flakes

        石墨烯
        容量25ml/50ml
        溶液:乙醇
        濃度:1mg/L
        Carbon content: 99.99%
        Ultrapure: no oxidation, no surfactants
        Average flake thickness: 0.35 nm (1 monolayer)
        Average Particle (lateral) size: ~ 550 nm (150-3000) nm.


        CVD Graphene:鎳基石墨烯層
        100mm直徑 - One Wafer 100mm with Graphene Film on Nickel
        10mm x 10mm,10片 - Ten 10mmx10mm samples, Graphene Film on Nickel
        10mm x 10mm,20片 - Twenty 10mmx10mm samples, Graphene Film on Nickel
        石墨烯石墨烯石墨烯

        應用:
        Graphene electronics
        Conductive coatings
        Aerospace industry
        Support for metalic catalysts
        Microactuators
        MEMS and NEMS
        Chemical and bio sensors
        Multifunctional Materials Based on Graphene
        Graphene Research

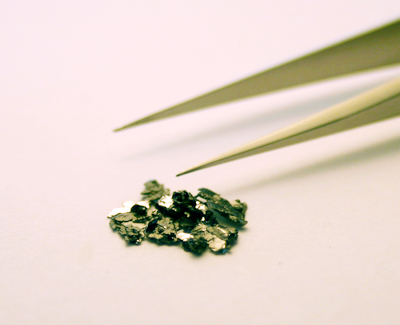

        Kish Graphite:石墨烯鱗

        石墨烯

        Grade 300
        Ultrapure: Carbon>99%
        Large Flakes: size 1-3 mm

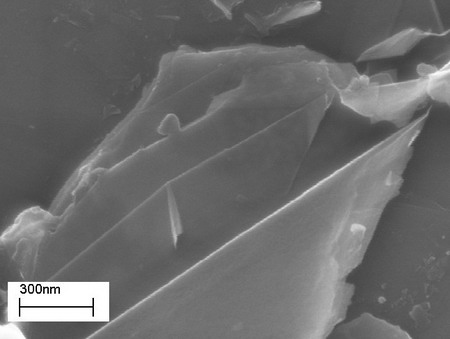

        石墨烯鱗被研究機構用于制作石墨烯。典型的TEM圖形:
        石墨烯
        石墨烯

        Grade 50
        Ultrapure: Carbon>99.2%, Moisture<0.35%
        Flake size 500-1000 micron
        Perfect inexpensive starting material for syntesis of:
           Graphene Intercalation Compounds
           Graphene Oxide
           Graphene Flakes prepared by sonication assisted dispersion.
           Graphene hybrid materials

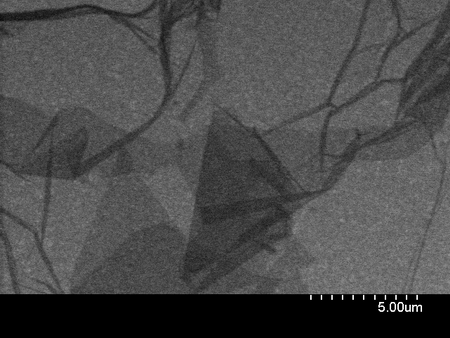

        典型的TEM圖形:
        石墨烯

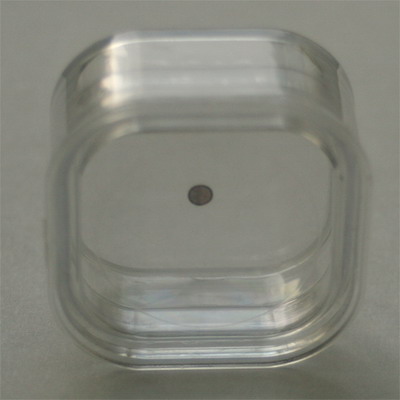

        CVD Graphene石墨烯膜
        film deposited on lacey carbon TEM grids, 300 Mesh

        石墨烯
        Thickness of CVDTM Graphene film: 0.3-3 nm
        Typical graphene coverage:15-20%

        超薄CVD Graphene石墨烯膜是高分辨率TEM圖像的理想樣品,應用包括:
           Imaging of nanoparticles, proteins, viruses, DNA
           Medical Diagnostics
           Single Cell Studies
           3D protein imaging
           Drug design
           Imaging of Biological Markers and bio-inspired nanomaterials
           Cryo-transmission electron microscopy, Electron Cryomicroscopy
           Single Particle Analysis (SPA)
           Materials science and Semiconductor Research
           Electron Energy Loss Spectroscopy (EELS)


        Graphene Nanopowder:石墨烯納米粉末

        應用:
           Graphene-polymer composite materials
           Electrically and thermally conductive composites
           Conductive coatings
           Aerospace industry
           Fire retardants
           Support for metalic catalysts
           Low permeability materials
           Electro-static Dissipation (ESD) films
           Chemical and bio sensors
           Multifunctional Materials Based on Graphene
           Graphene Research

        種類
        8 nm薄膜
        12 nm薄膜
        60 nm薄膜
        多層薄膜
        等級
        AO-2
        AO-3
        AO-4
        MO-1
        圖片
        石墨烯
        石墨烯
        石墨烯
        石墨烯
        參數 Specific surface area-100 m/g2
        Color: Black
        Purity: 99.9%
        Average flake thickness: 8 nm (20-30 monolayers)
        Average Particle (lateral) size: ~ 550 nm (150-3000) nm
        Specific surface area-80 m/g2
        Color: Black
        Purity: 99.2%
        Average flake thickness: 12 nm (30-50 monolayers)
        Average Particle (lateral) size: ~ 4500 nm (1500-10000) nm
        Specific surface area<15 m/g2
        Color: Black
        Purity: 98.5%
        Average flake thickness: 60 nm
        Particle (lateral) size: ~ 3-7 microns
        Specific surface area-60 m/g2
        Color: Black
        Purity: 99.9%
        Average flake thickness: 28 nm
        Density: 0.3 g/cm3


        單層氧化石墨烯

        石墨烯

        Graphene Oxide: 100 mg
        Dry powder
        Color:Brown
        Composition: Carbon (79%), Oxygen (20%)
        Flake size: 0.5-5 microns
        Thickness: 1 atomic layer - at least 80%
        Graphene oxide disperses readily in water and other solvents, breaking up into macroscopic flakes, mostly one layer thick. Graphene oxide layers are about 1.1 ± 0.2 nm thick.

        單層氧化石墨烯水溶液

        石墨烯

        Aqueous dispersion, 60 ml
        Concentration: 275 mg/L
        Composition: Carbon (79%), Oxygen (20%)
        Flake size: 0.5-5 microns
        Thickness: 1 atomic layer - at least 80%
        Color:Brown



        石墨烯CVD產品





        玻色智能科技有限公司光譜儀專家
        上海玻色智能科技有限公司
        上海: (021)3353-0926, 3353-0928   北京: (010)8217-0506
        廣州: 139-0221-4841   武漢: 139-1733-4172
        全國銷售服務熱線:4006-171751   Email: info@bosontech.com.cn
        www.www53908.com    2008-2025 All Rights Reserved!
        欧美激情综合一区二区三区|久久www免费人成精品妓女|中文字幕巨乱亚洲|亚洲午夜高清拍精品|亚洲永久精品|亚洲|国产品国语在线不卡
        <optgroup id="wyv1v"><em id="wyv1v"><pre id="wyv1v"></pre></em></optgroup>

        <optgroup id="wyv1v"><li id="wyv1v"></li></optgroup>

        <track id="wyv1v"></track>
          <span id="wyv1v"><output id="wyv1v"></output></span>

            <span id="wyv1v"><output id="wyv1v"></output></span>
