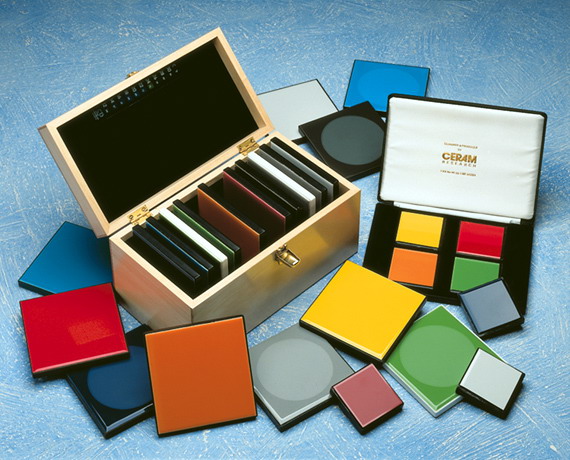

        英國陶瓷研究協會/BCRA (British Ceramic Research Association) 陶瓷標準色板



        BCRA (British Ceramic Research Association)是英國陶瓷研究協會,提供的陶瓷標準顏色板是業界常用的顏色標準,用于標定光譜分光式色度計,包括半球光路測試條件和 d/d 測試條件。

        BCRA陶瓷標準色板

        BCRA Series II色板的尺寸:5cm×5cm,共包括14塊板:
        7 chromatic standards for spectral response
        2 colour difference standards
        3 neutral grey standards for photo linearity
        1 Glossy Black Standard
        1 Glossy white Standard



        1,基本色Basic Colors
        2,灰階及柔和色Grey Scale and Pastel Colors
        3,特殊色Special Colors

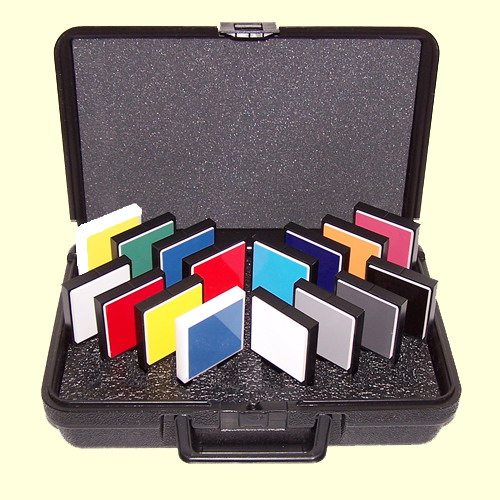

        Set #1 - 基本色Basic Colors

        陶瓷標準色板

        Part No. ATBC-16-02-u (uncalibrated)
        Part No. ATBC-16-02-c (calibrated)

        B1. Light Grey
        B2. Red
        B3. Difference Yellow
        B4. Difference Mid-Blue
        B5. White
        B6. Mid-Grey
        B7. Deep Grey
        B8. Black B9. Yellow
        B10. Deep Green
        B11. Mid-Blue
        B12. Deep Red-Orange
        B13. Cyan
        B14. Deep Blue
        B15. Mid-Orange
        B16. Deep Rose Pink

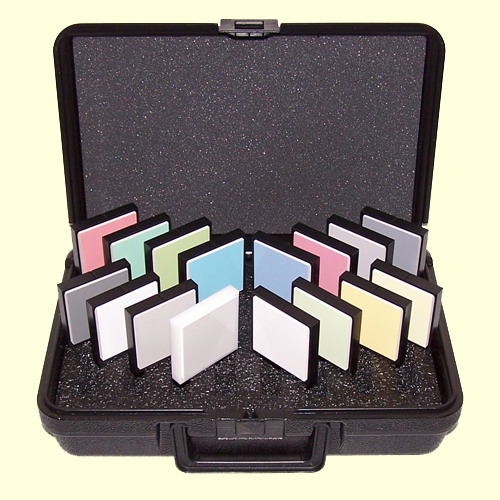

        Set #2 — Grey Scale and Pastel Colors

        陶瓷標準色板 Part No. ATGP-16-02-u (uncalibrated)
        Part No. ATGP-16-02-c (calibrated)

        P1. Grey 20%
        P2. Grey 85%
        P3. Difference Grey 50%
        P4. Grey 40%
        P5. Grey 80%
        P6. Light Green
        P7. Light Orange
        P8. Light Yellow P9. Light Pink
        P10. Light Blue Green
        P11. Light Yellow Green
        P12. Light Cyan
        P13. Light Blue
        P14. Rose Pink
        P15. Grey 50%
        P16. Grey 33%



        Set #3 — Special Colors 特殊色

        陶瓷標準色板

        Part No. ATSC-16-02-u (uncalibrated)
        Part No. ATSC-16-02-c (calibrated)

        S1. Dark Blue-Violet
        S2. Deep Violet
        S3. Difference Deep Violet
        S4. Deep Red
        S5. Yellow-Green
        S6. Purple
        S7. Yellow-Orange
        S8. Greenish-Yellow S9. Red-Orange
        S10. Greenish-Blue
        S11. Dark Blue
        S12. Mid-Brown
        S13. Mid-Green
        S14. Dark Green
        S15. Dark Purple
        S16. Dark Brown




        標準色板目錄
        BCRA-14-02C Color Standard Set CERAM Research Tiles, Set of 14 2" standards, Boxed/Calibrated
        BCRA-14-02U Color Standard Set CERAM Research Tiles, Set of 14 2" standards, Boxed/Uncalibrated
        BCRA-CY-02C Cyan BCRA Tile-Calibrated CERAM Cyan Tile, 2" , Boxed, calibrated (8°/Hemi)
        BCRA-CY-02U Cyan BCRA Tile-Uncalibrated CERAM Cyan Tile, 2" , Boxed, Uncalibrated (8°/Hemi)
        BCRA-GS9-02 BCRA Grey Scale Set CERAM Gray scale set, 8 greys and black glass, for 0:45 calibration/small spot
        ATBC-16-02u Avian Technologies/Mt. Baker Research Color Set Equivalent to BCRA Series II tiles plus black, white, extra colors
        ATGP-16-02u Avian Technologies/Mt. Baker Research Color Set Pastel and extended grey scale set of 16 tiles
        ATSC-16-02u Avian Technologies/Mt. Baker Research Color Set Extended (Special) color set, saturated colors, extra whites and greys
        Calibrated set AT/MBR Color sets, 8° Hemi refl calibration any set, add (no discount on calibrations)
        CSS-CCS-12-02c CCS Colors/Full Set-Calibrated CCS Colour/Grey Standards, 2" square, glossy, boxed, Calibrated at 8°/Hemi. Geom.
        CSS-CCS-12-02u CCS Colors/Full Set-unCalibrated CCS Colour/Grey Standards, 2" square, glossy, boxed, typical data given

        熒光色度標準

        FFS-BL1-02 Colored Fluorescent Standard-Blue 2" Diameter UV Activated Fluorescent Standard- ALN-BP Blue
        FFS-BL2-02 Colored Fluorescent Standard-Blue 2" Diameter UV Activated Fluorescent Standard- SPEA Blue
        FFS-BG-02 Colored Fluorescent Standard-Blue Green 2" Diameter UV Activated Fluorescent Standard- 480 Blue green
        FFS-GR-02 Colored Fluorescent Standard-Br.Green 2" Diameter UV Activated Fluorescent Standard- ALN-GP Green
        FFS-OR-02 Colored Fluorescent Standard-Orange 2" Diameter UV Activated Fluorescent Standard- YSA Orange
        FFS-BR-02 Colored Fluorescent Standard-Brt.Red 2" Diameter UV Activated Fluorescent Standard- HRA Red
